Automated Weekly Dump Upload Configuration

Automated Weekly Dump Upload Configuration

A task setting is configured to upload the GOAA production SDS Configuration Files to the cloud for the Synect Development team to evaluate and run concurrently in the Synect Redmond Lab. The files are uploaded to the Synect bitbucket.org account.

Steps to Create the Task:

Download the GOAA_SDS_Dump configurations folder to the SDS device:

·       C:\Users\synect-1U\Documents\goaa-sds-dumps

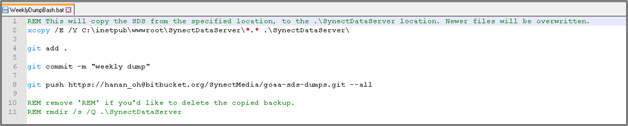

·       This file will include the “WeeklyDumpBash.bat” that will run the script for the copy and exportation of the files

·       Edit the WeeklyDumpBash.bat file to copy the SDS from the current location.


                           1.      Open the Task Scheduler

                                          2. Create a new task to use the windows scheduler to run this task at the required time

a.             Name: Weekly DMP Bash

b.       Trigger: 12:00 AM every day

c.       Actions: start a program

                                                               i.      Details: C:\Users\synect-1U\Documents\goaa-sds-dumps\ WeeklyDumpBash.bat

                         3. Select OK and run manually for testing and verification


MANUAL DUMP:
  1. Go to 172.28.16.15

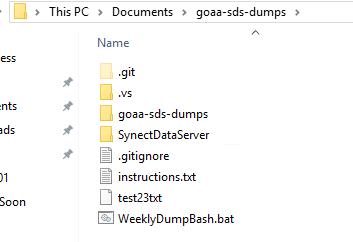

  2. This PC\Documents\goaa-sds-dumps
  3. Double click the weeklydumpbash.bat file
